200 PSI Dual Needle Gauge | Manual Paddle Valves | 2-Way Air Management

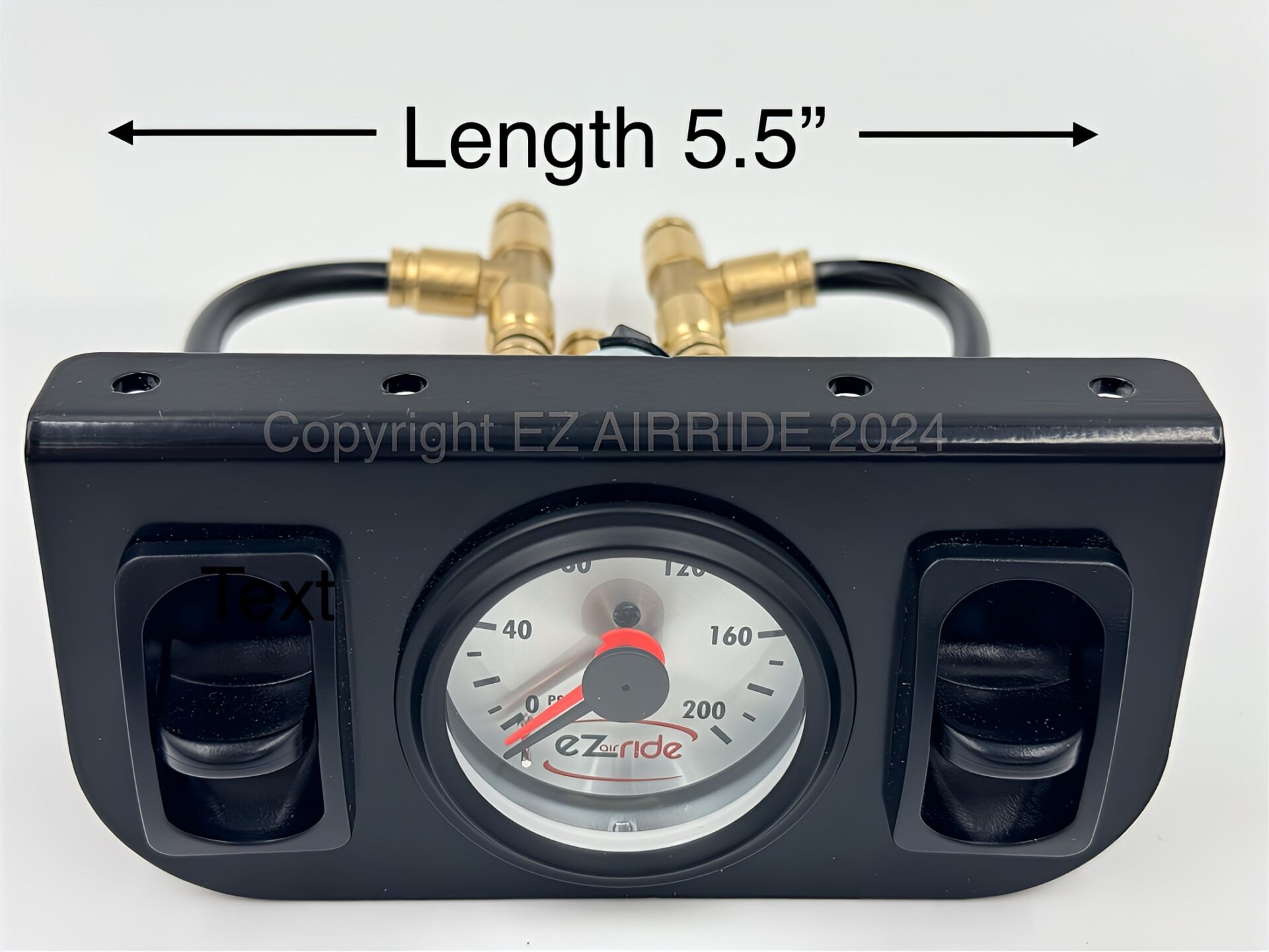

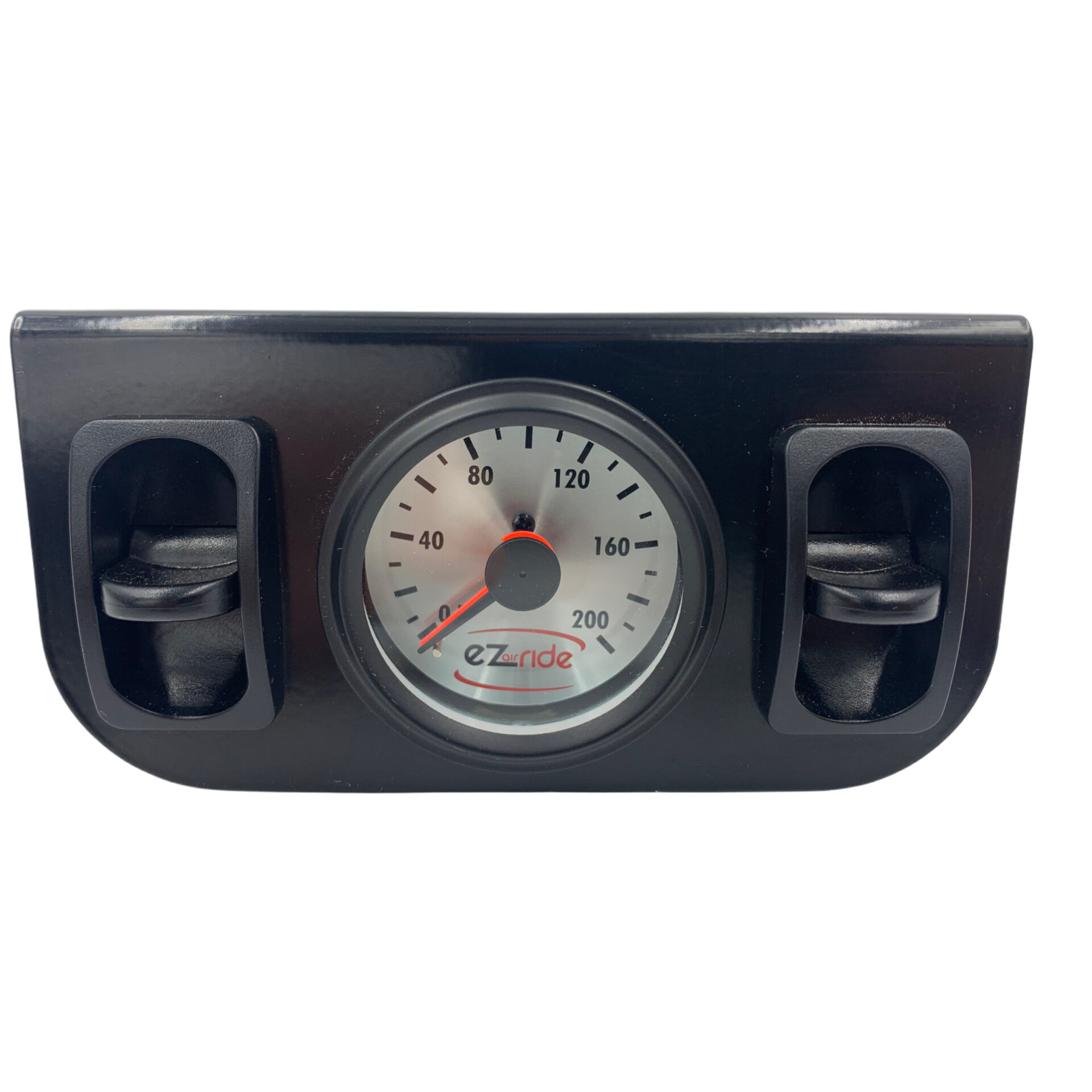

Front & Rear Gauge Panel w/ Dual Manual Paddle Valves | EZ Air Ride Classic

Total Front-to-Back Control — Old School Simplicity over Science.

Stop chasing electrical “ghosts” and take back control of your ride: Our Classic Series Gauge Panel is the ultimate simple solution for streamlined Front and Rear air control. Designed for the builder who is fed up with finicky leveling sensors, expensive Bluetooth modules, and moisture-sensitive electronics, this panel replaces high-tech headaches with pure, raw mechanical reliability.

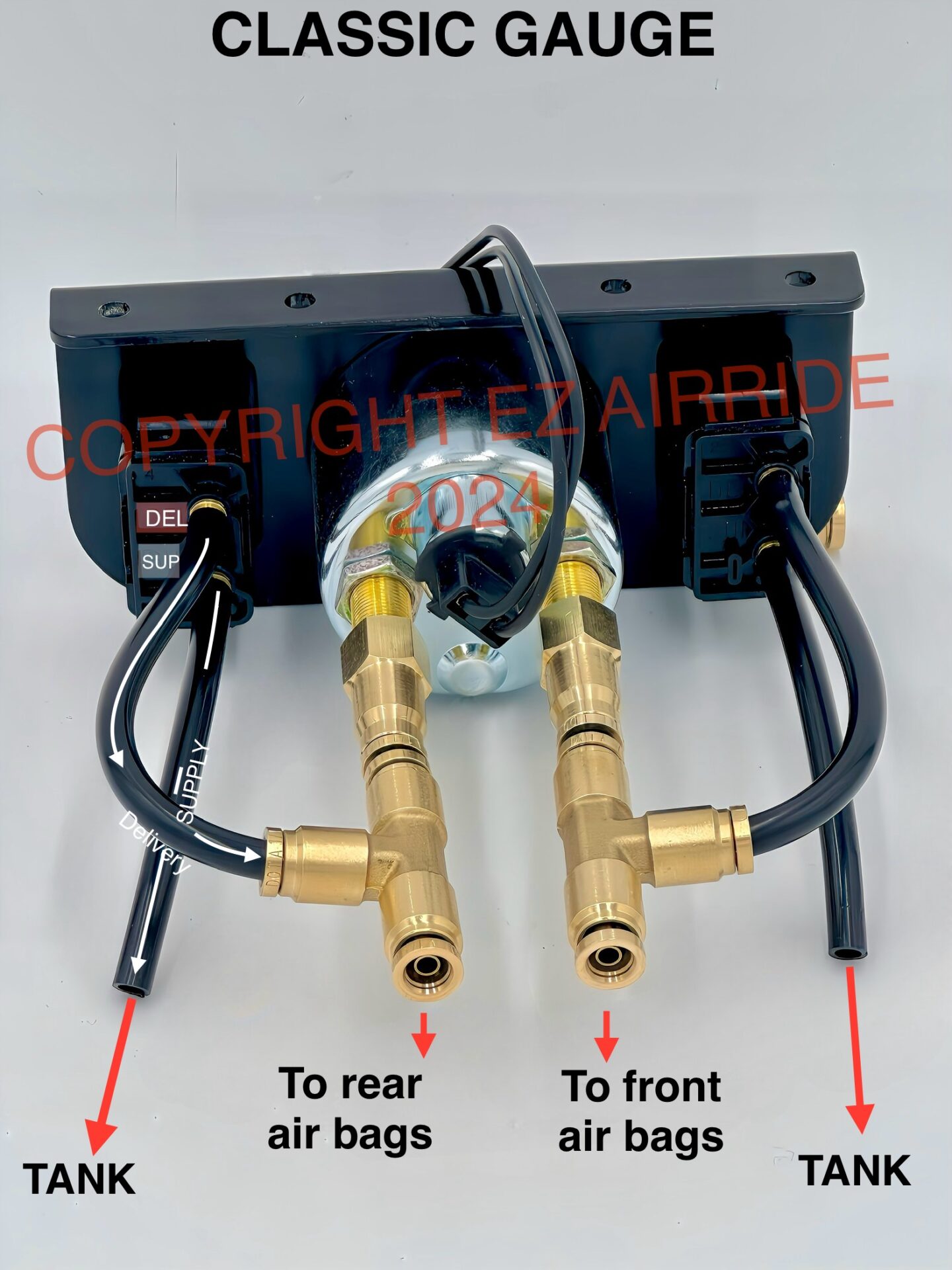

Reliability Without the Wires, Sensors, or Software: We’ve mounted our exclusive 200 PSI dual-needle gauge into a sleek, black powder-coated panel alongside two high-flow manual paddle valves. This setup gives you the power to adjust your front and rear bags independently without a single electrical connection. Why worry about self-leveling glitches or sensor calibration when you can have a direct pneumatic link routed straight from your tank, through your dash, and to your bags? This old-school mechanical panel is built to perform where electronics fail—eliminating the guesswork of delicate sensors and putting total control directly into your hands.

• Classic Gauge Features:

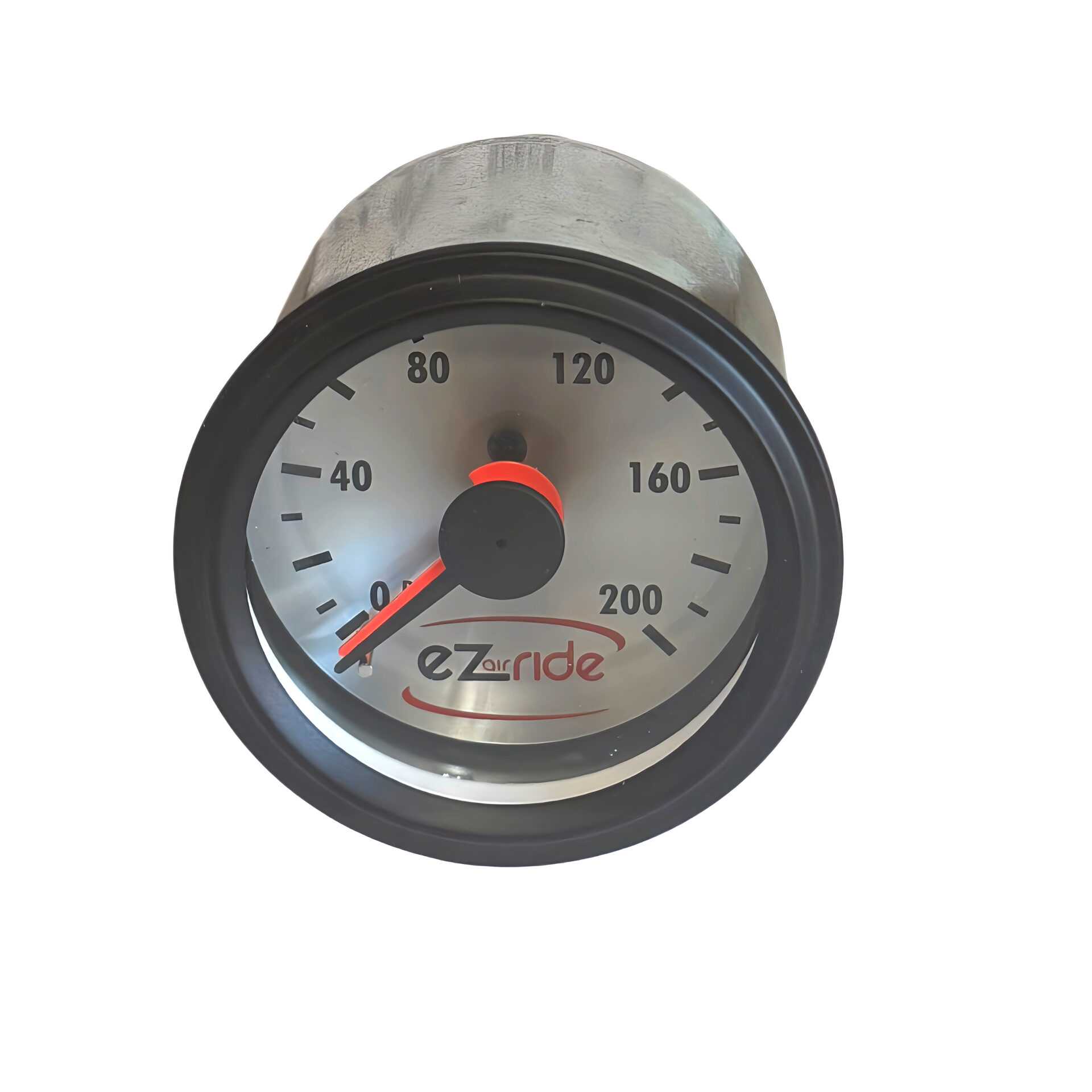

• This 2  1/16″ (52mm) dual needle air pressure gauge has a range of 0-200 psi. This sleek gauge features a glass face with a brushed aluminum dial, a black bezel, all encased in a durable metal housing.
• A bright white LED bulb which provides excellent visibility, and comes with an integrated 36″ power harness for easy installation.
• The dual needles, one black and the other orange, clearly indicate pressure levels for both the front and back of the vehicle.

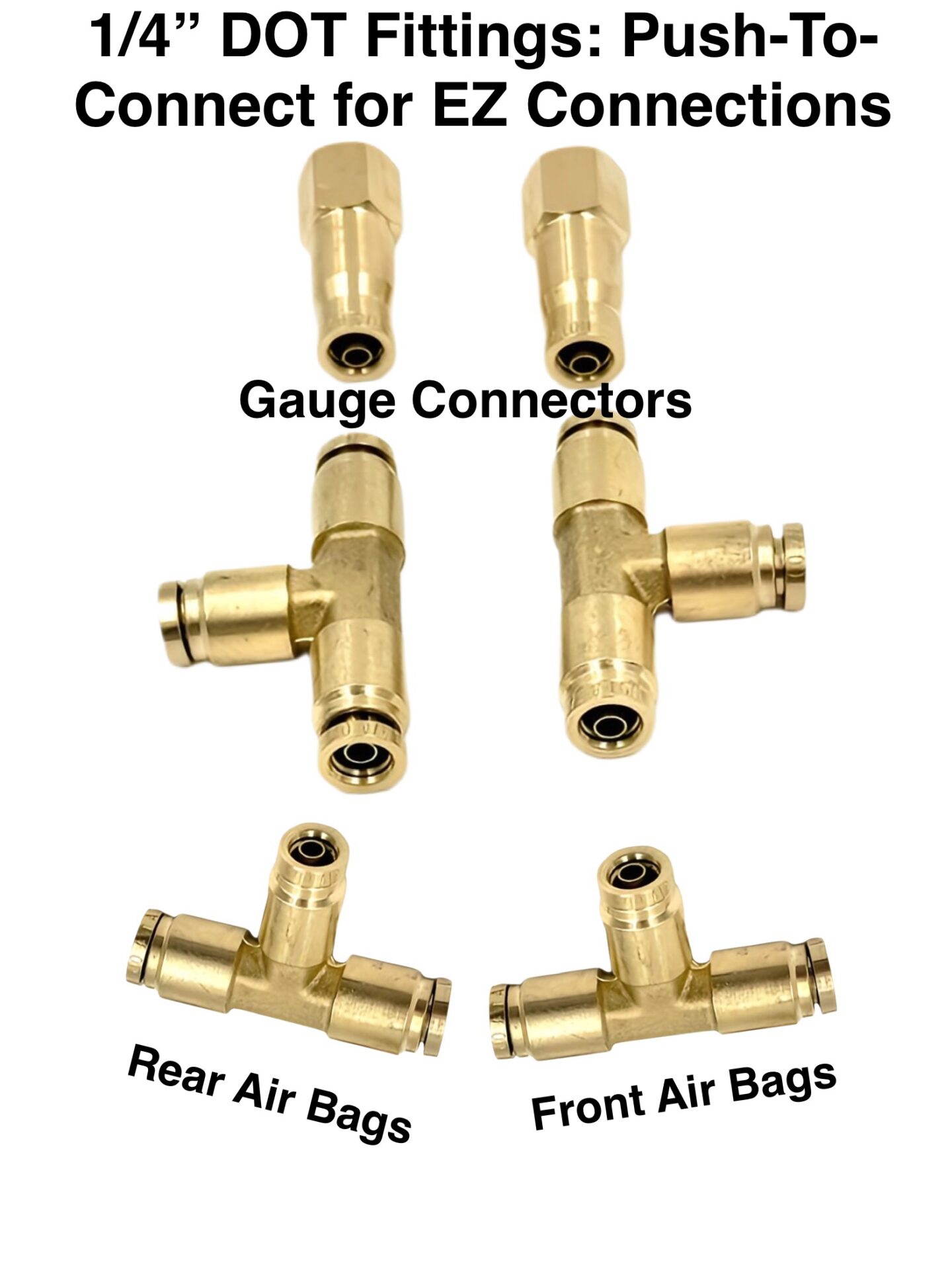

• The panel boasts a sleek powder coated black finish and comes complete with the gauge, two manual paddle valve switches and all the necessary 1/4″ brass DOT  fittings that push to connect.

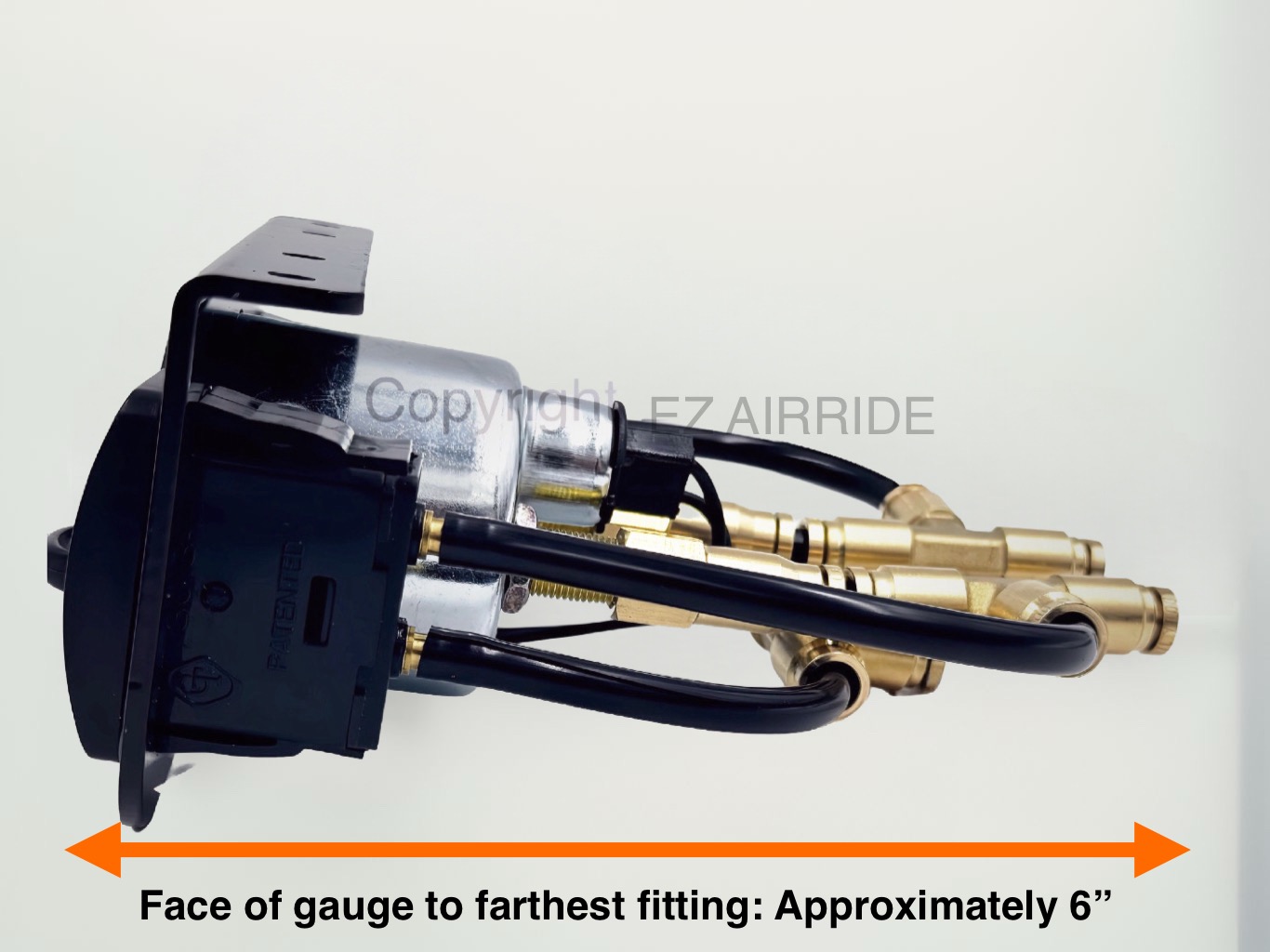

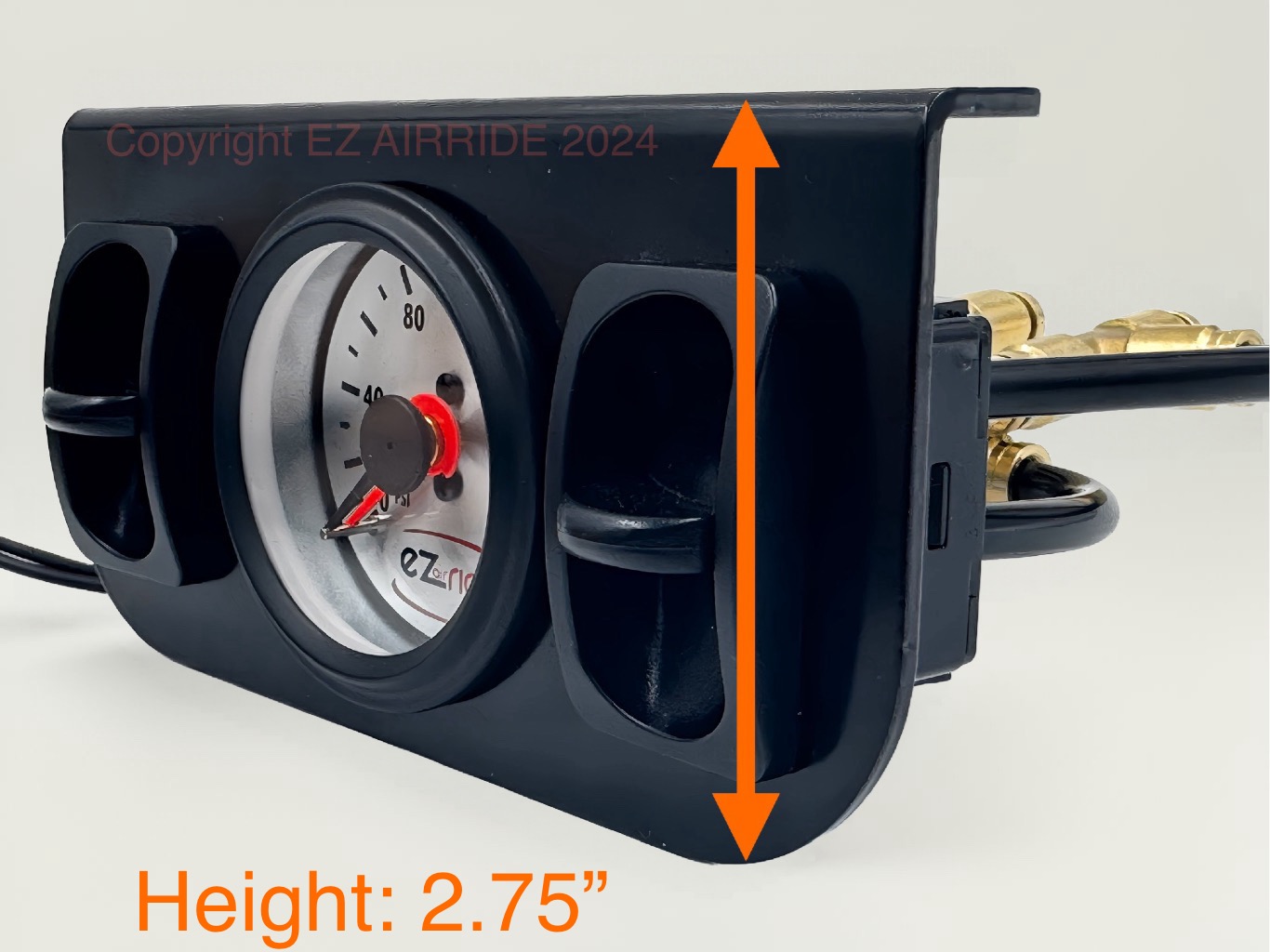

*Check the Product Gallery for full specs, dimensions, and pro-level install tips.
