The Old School Look with a Modern Advantage.

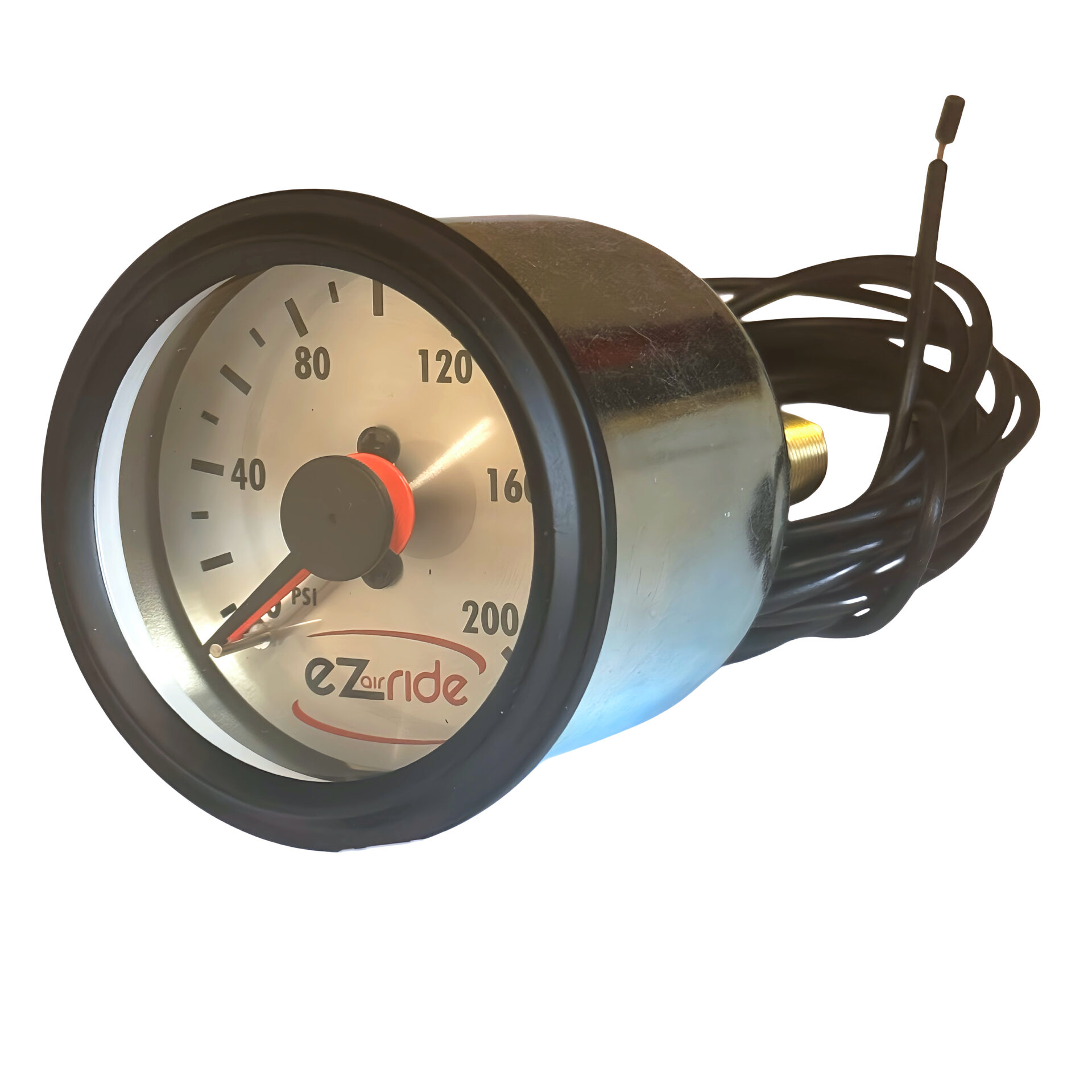

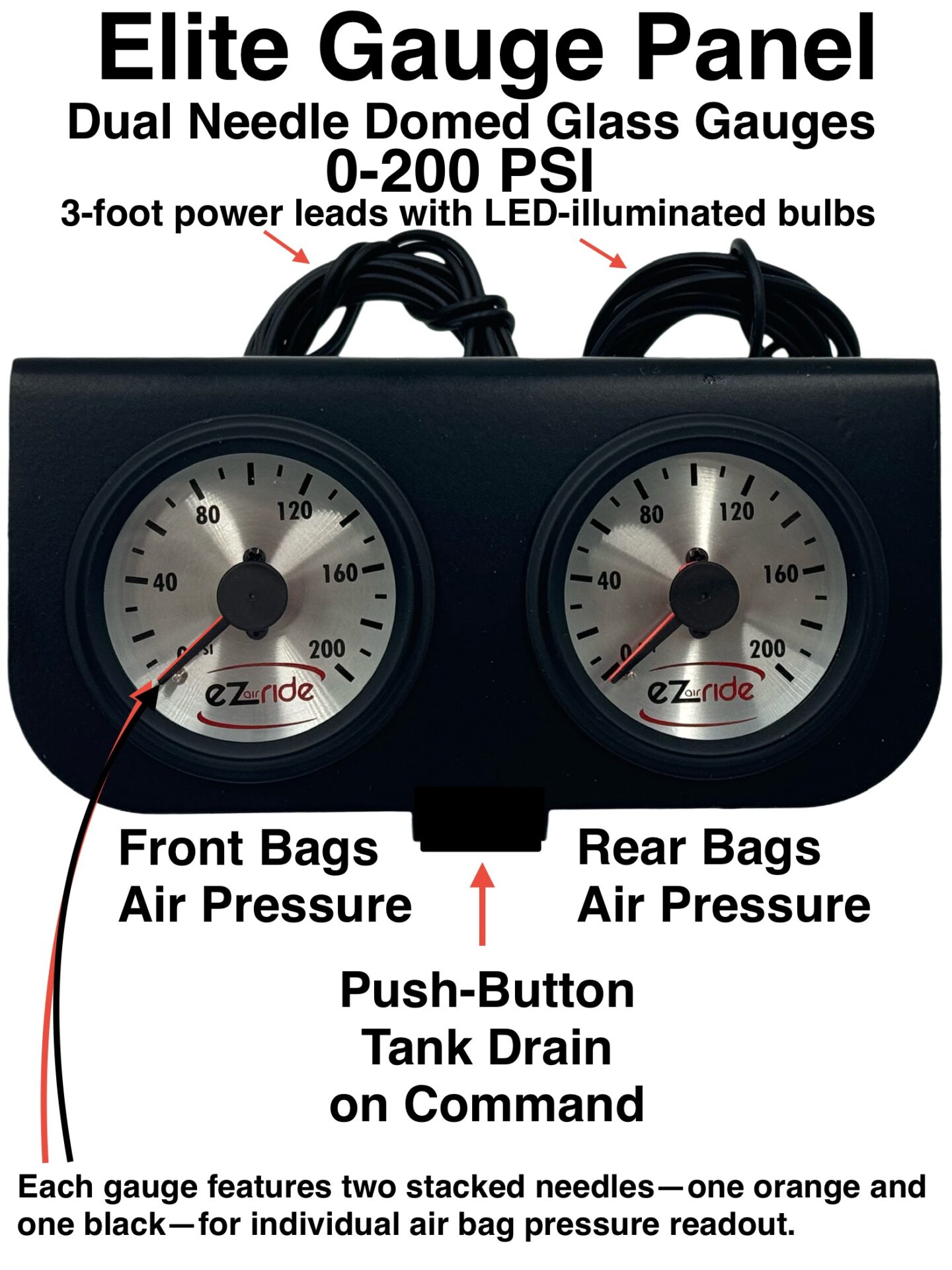

The Elite Analog Gauge Panel is for the custom builder who appreciates the timeless look of old-school mechanical needles, and gets to ditch the most frustrating part of all air ride systems all in one—and that’s crawling under the vehicle or laying in the trunk with a wrench in one hand and a rag in the other to drain the tank.

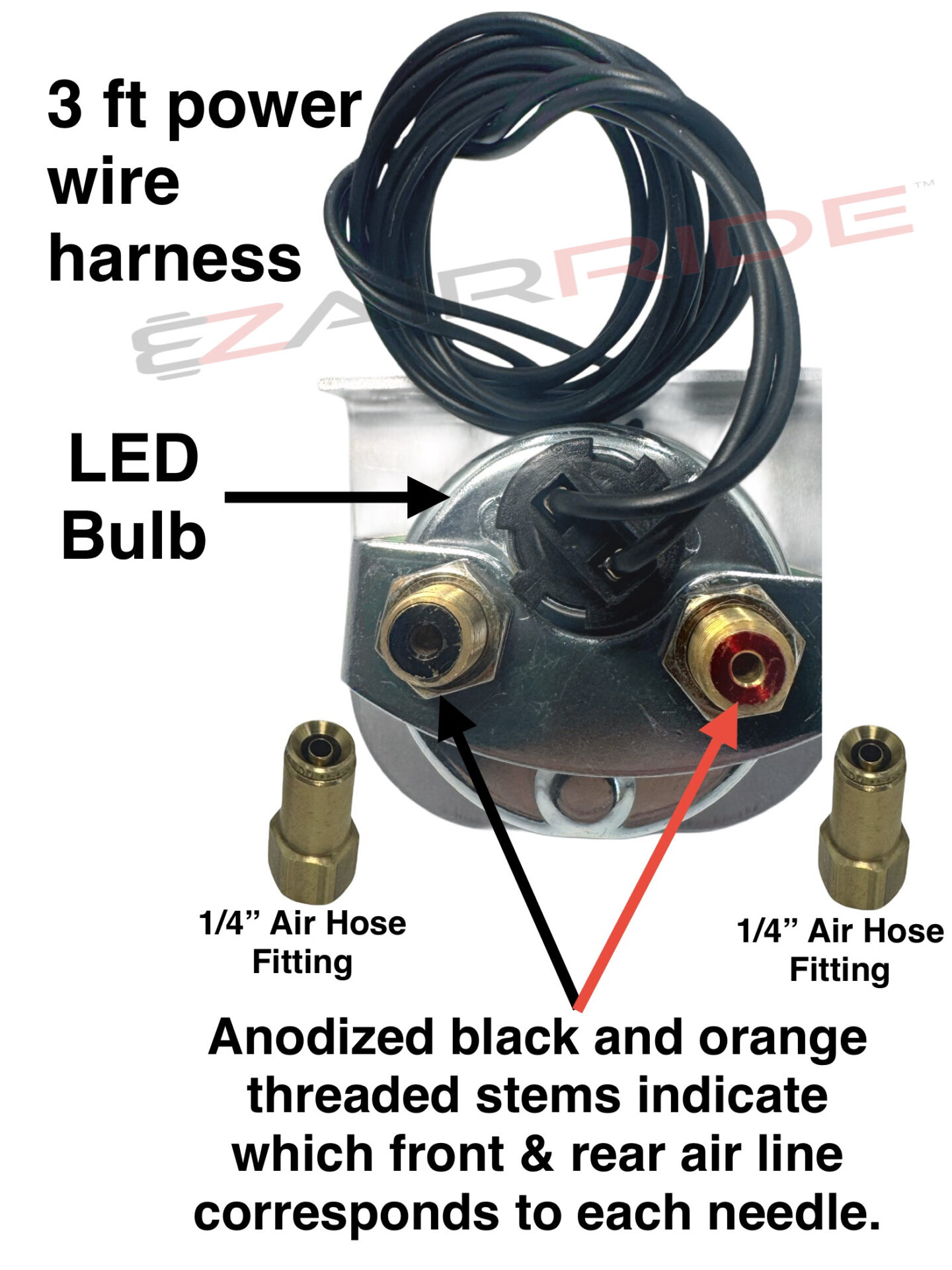

Mechanical Reliability: This system uses traditional 1/4″ airline hose that needs to be plumbed from the back of the gauge to the manifolds—typically located in the trunk of a car or at the back of a truck chassis. While this takes a bit more effort to install, it keeps your build “old school” for that unmatched mechanical reliability and real-time needle response.

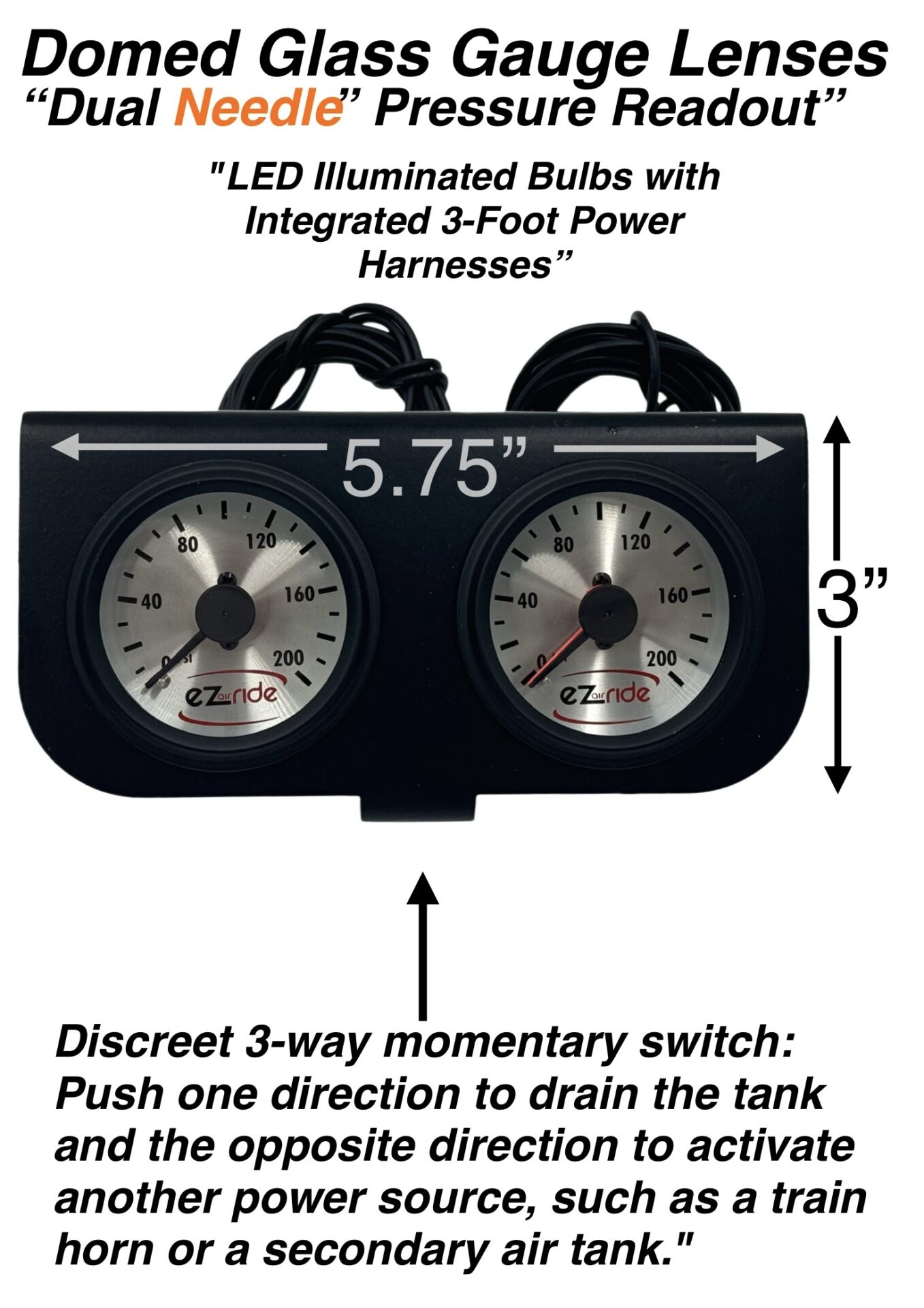

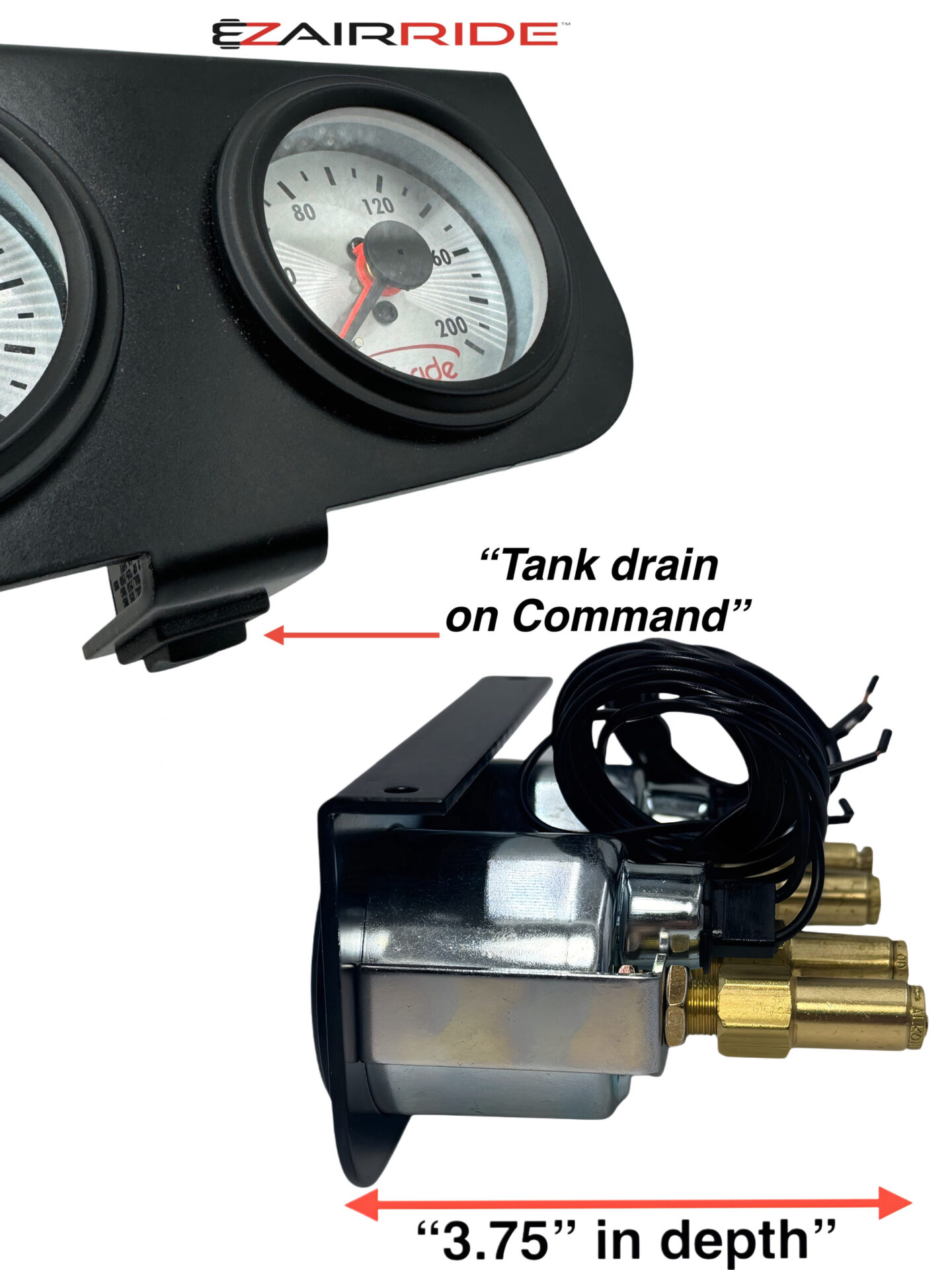

Tank Tap™ — One-Touch Moisture Management: We’ve turned a messy maintenance task into a “Stealth” on-demand feature by integrating our exclusive Tank Tap™ technology directly into the gauge housing. Because we use a 3-way momentary switch, you aren’t limited to just a single tank drain. This is a center-off design, meaning you have two independent circuits right at your fingertip. One side is dedicated to your electric tank valve for an instant moisture purge, while the other side is an open circuit ready for your next upgrade— a train horn, a deck lid popper, or an additional second tank drain for Dual Tank Systems. No more searching for hidden toggle switches; just a quick tap to keep your system dry and your build protected.

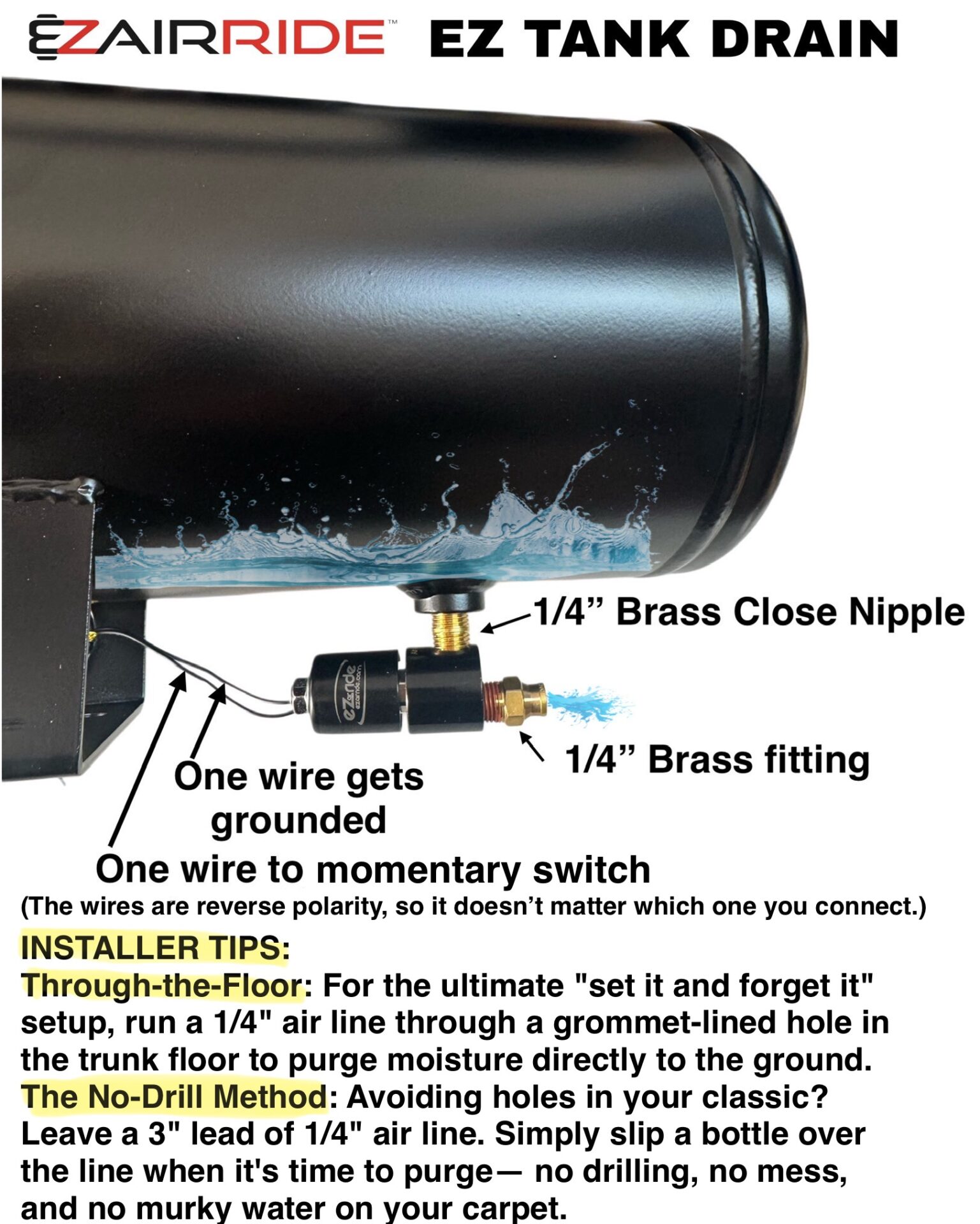

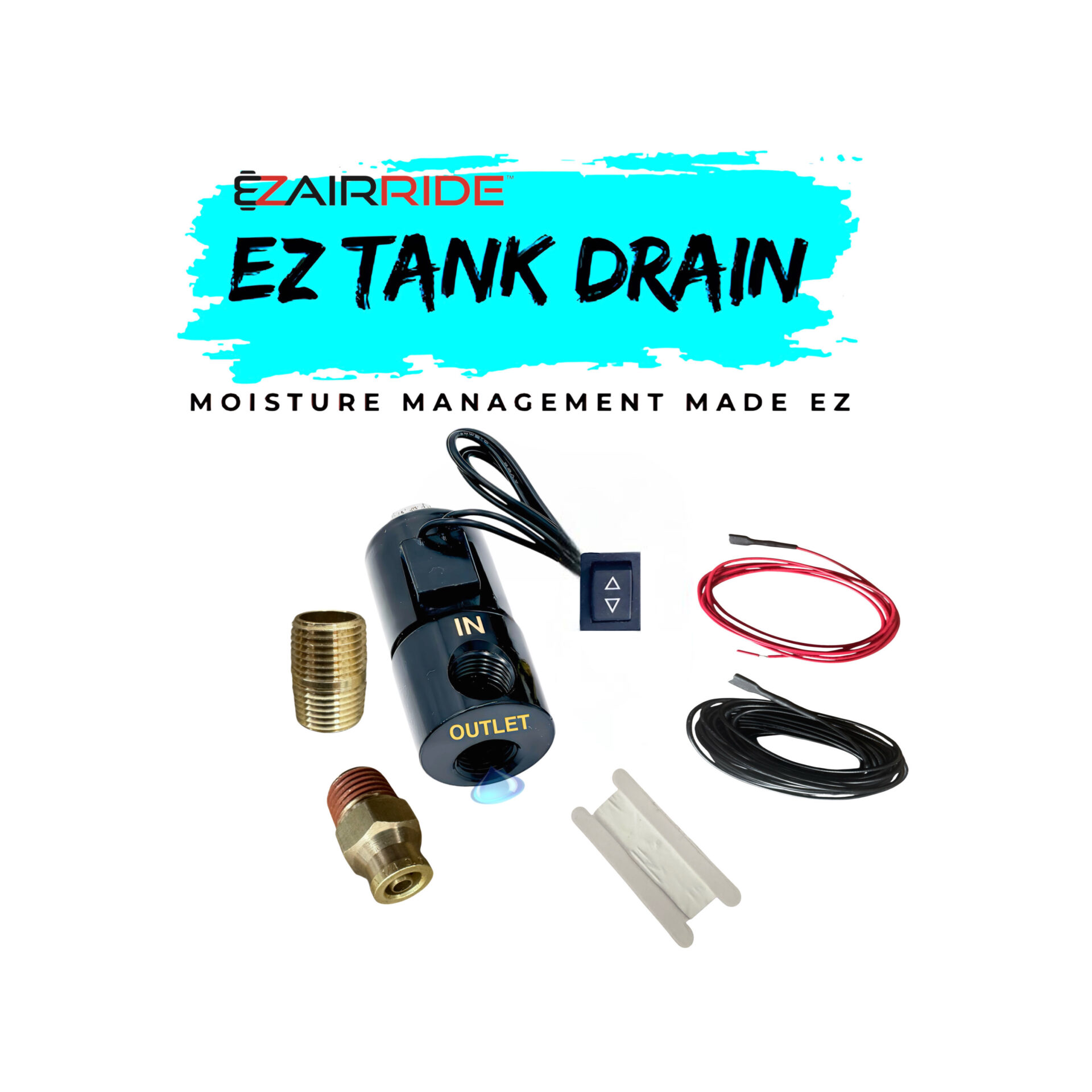

The EZ High-Flow Tank Valve: Is the muscle behind your maintenance, featuring a 1/4″ NPT thread designed to fit directly into the bottom port of our EZ 6-gallon tank or any standard air reservoir. Rated for 250 PSI, this valve is engineered to blast out moisture and sediment in a split second with the touch of a finger. This ensures your entire air system – from your manifolds and electric sensors to your gauges – remain protected from the internal moisture and debris that can compromise performance and longevity. We’ve included a 1/4″ close nipple for a secure, flush mount to your tank, along with a DOT-approved Push-to-Connect (PTC) exit fitting to easily route moisture through the trunk floor with a short length of 1/4″ air hose for that professional finish.
Pro-Tip: The “Soda Bottle” Method: If you don’t want to drill a hole through your trunk floor to vent moisture outside the vehicle, you can simply attach a 3 to 4 inch length of air hose to the fitting on the exit port. When it’s time for maintenance, just place an empty soda bottle over the hose, hit the Tank Tap™ button on your gauge, and see exactly what you’ve purged from your system.
What’s Included:

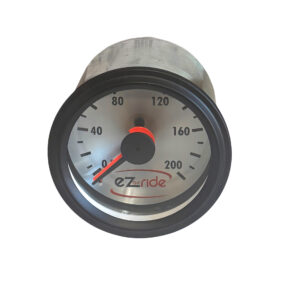

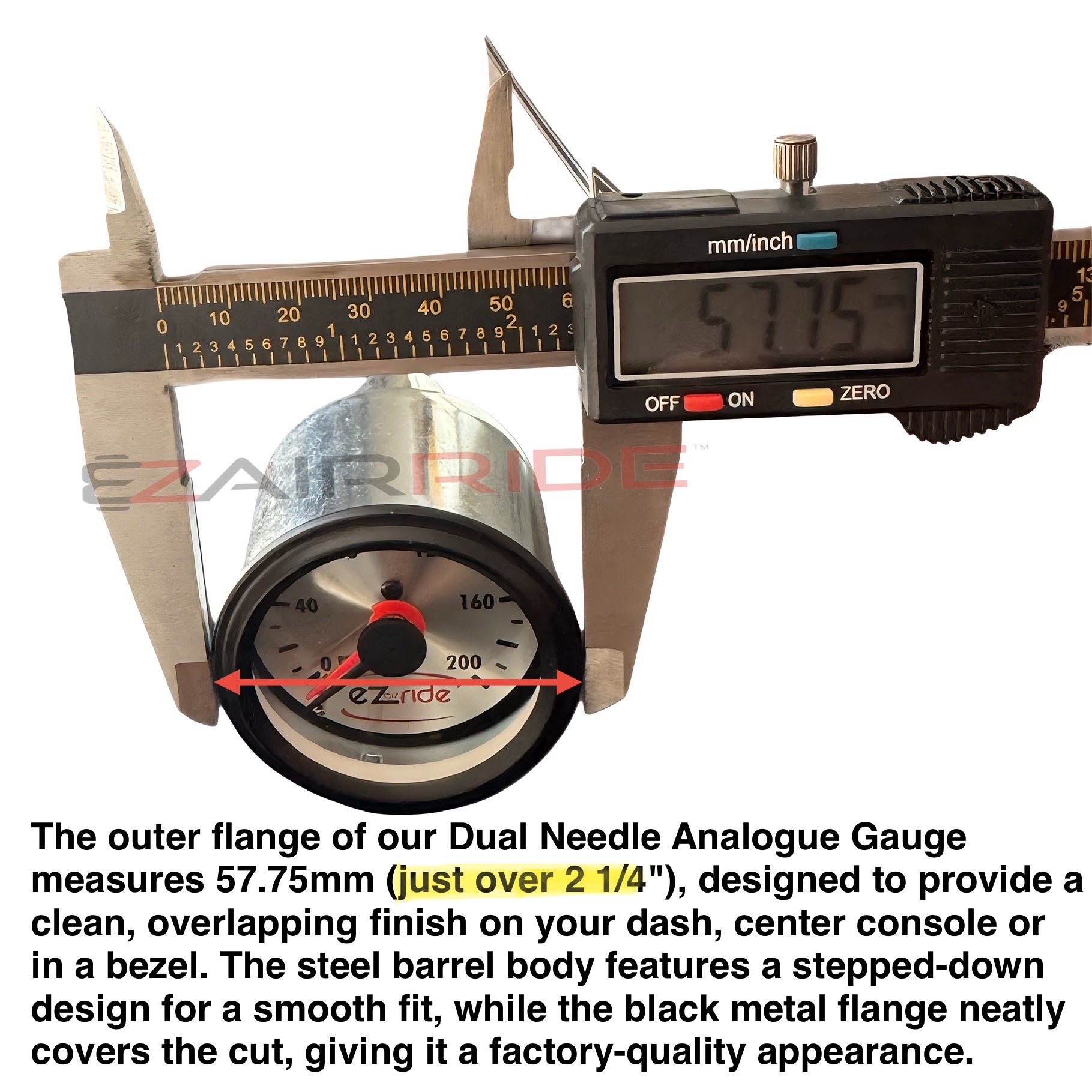

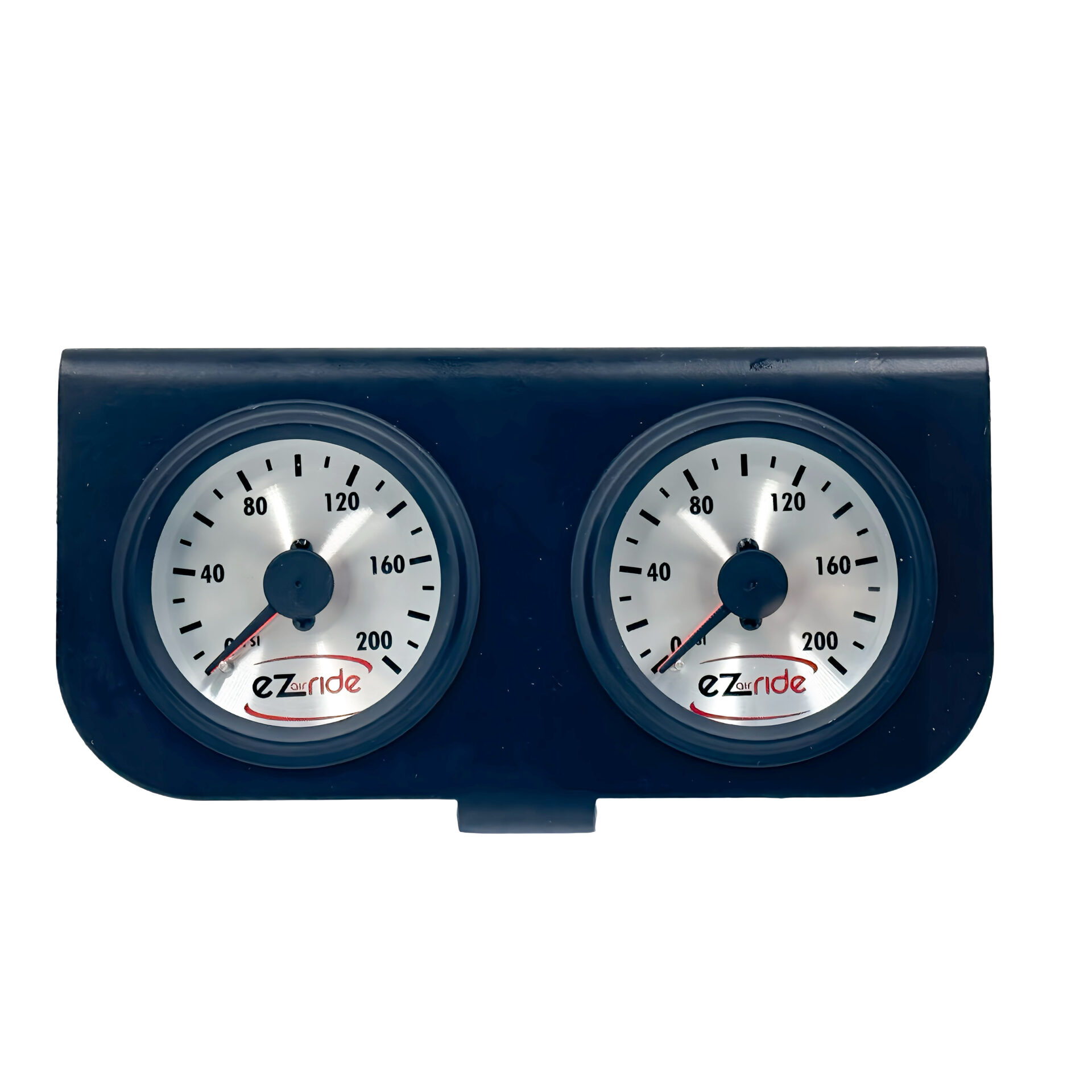

- (1) Elite Dual Analog Gauge Bezel (Black Powder-Coated Finish)

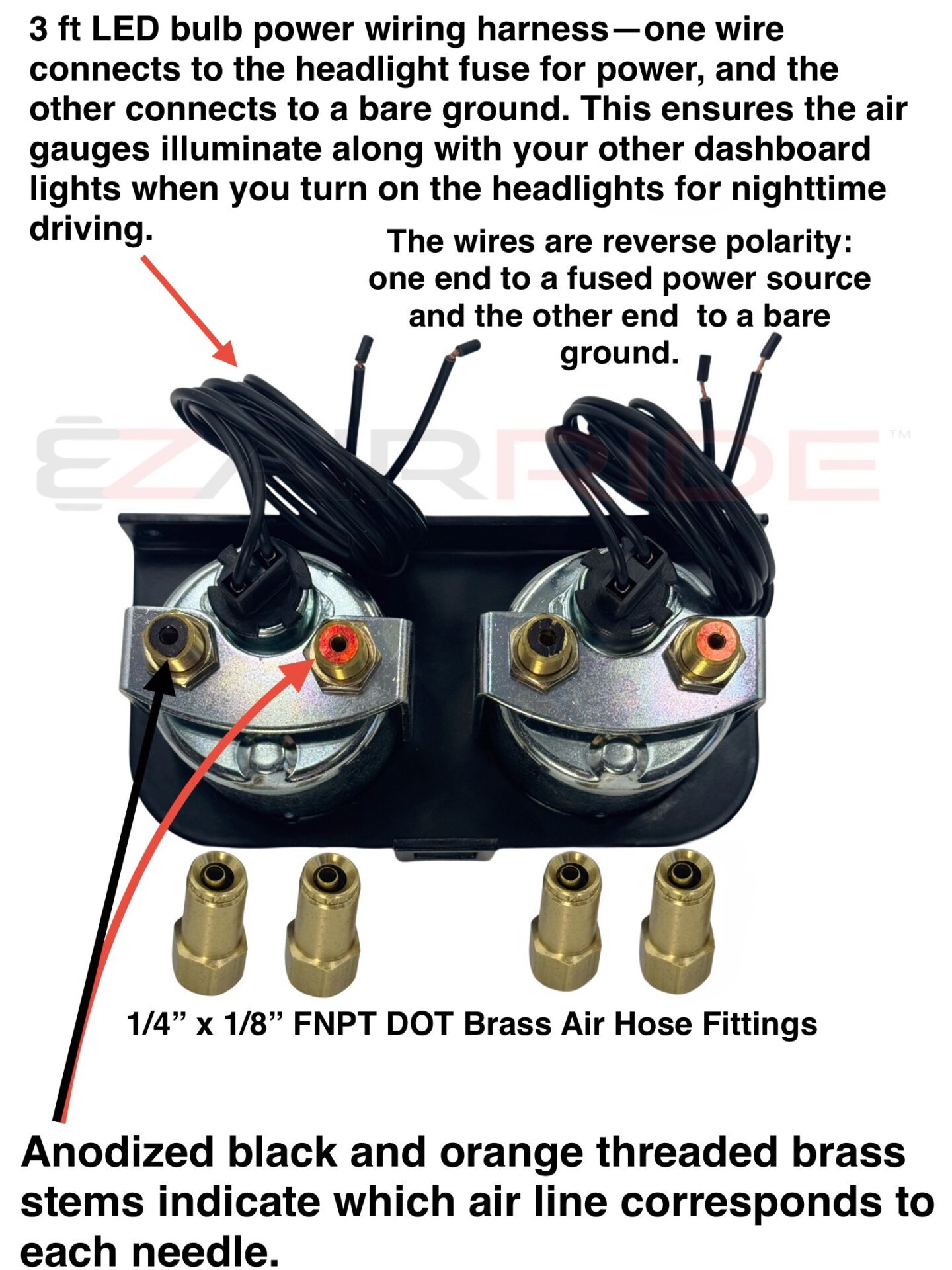

- (2) LED Lights (Bright LED Readout Lights & Power Wire Harnesses)
- (1) Integrated Tank Tap™ 3-Way Switch (With Power Wire & Valve Wire Leads)

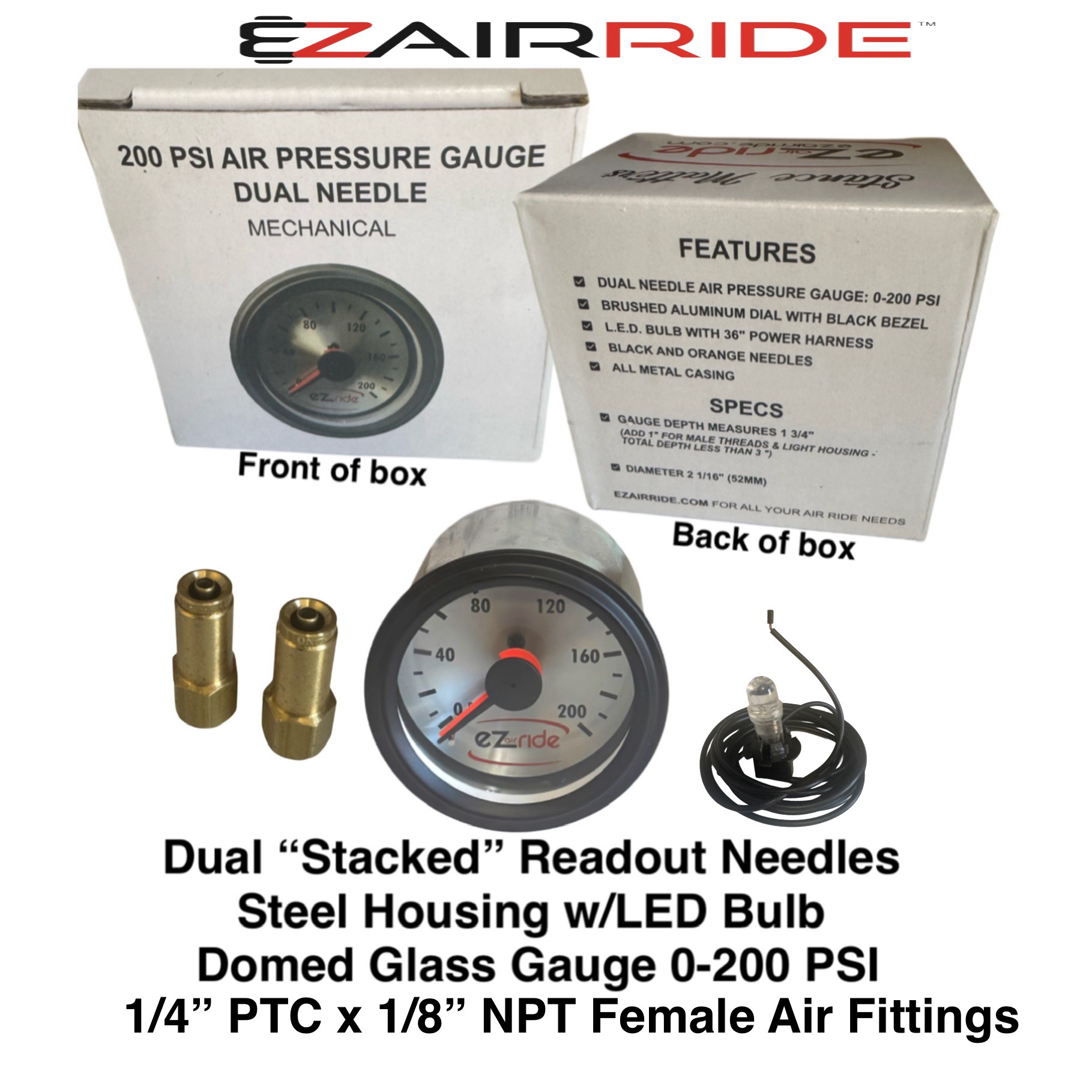

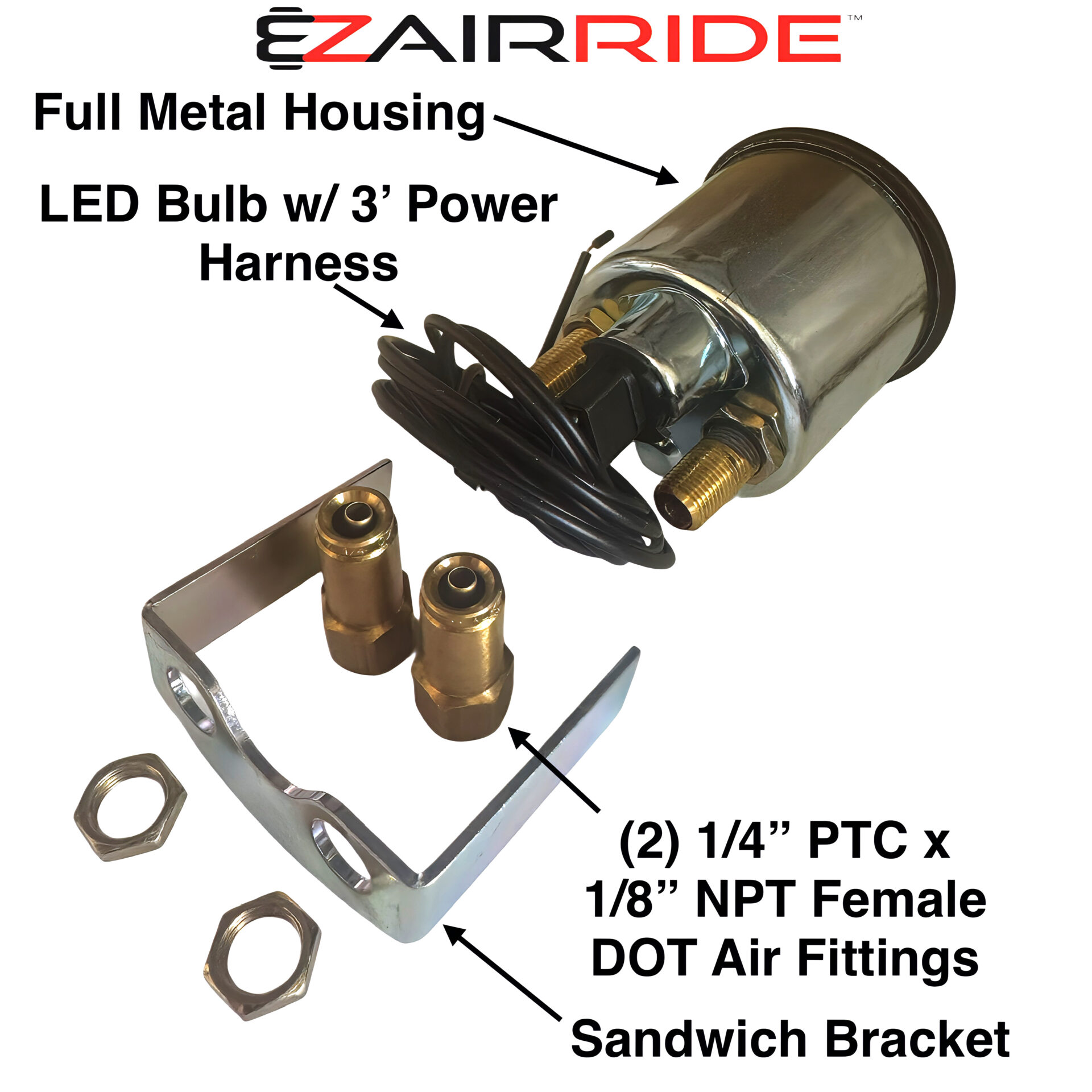

- (4) 1/4″ x 1/8″ DOT Push-to-Connect Gauge Fittings

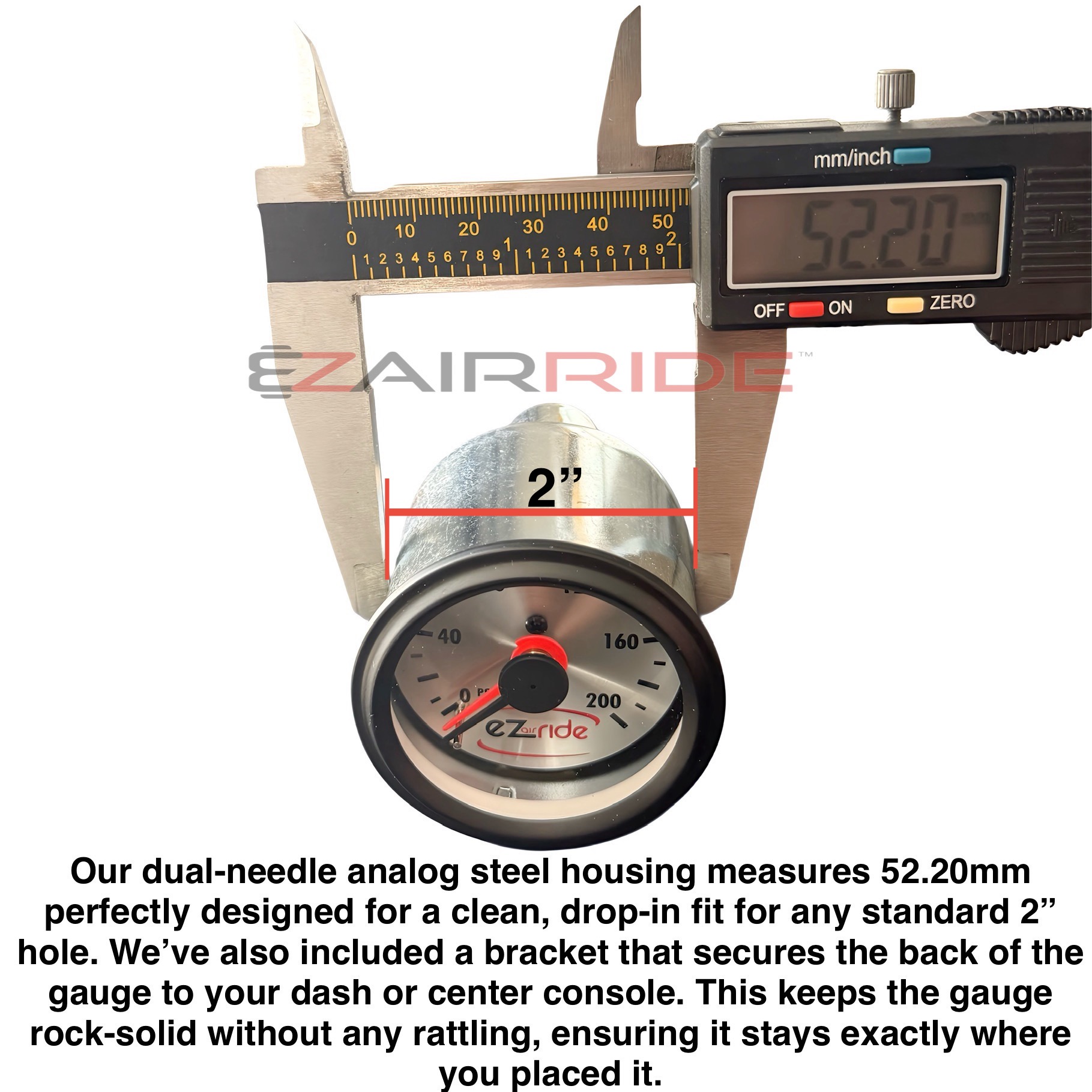

- (2) Tension Brackets (Sandwich mount the gauge to the Panel)
- (1) 1/4″ NPT High-Flow Electric Tank Valve (250 PSI Rated)
- (2) Switch to Tank Valve Wire Leads (5′ Red Wire=To Power / 15′ Black Trigger Wire=To Valve)
- (1) Brass DOT 1/4″ x 1/4″ Straight Fitting (For the valve exit port on tank valve)
- (1) Brass 1/4″ Close Nipple (Connects the valve to the tank)
- All Necessary Mounting Hardware
